For determining compressive strength of concrete cube 15 x 15 x15 cm or concrete cylinder 15 cm dia. x 30 cn height

Frame

Heavy-duty welded steel construction 30 cm
(profile steel columns 10 thick botttom and upper plate)

Hydraulic System
For 1500 kN Cap.

Cast iron cylinder,
Hard-chromed piston, 230 mm diameter
Maximum working pressure 50.000 kPa
Overall dimension 280 mm dia. x 320 mm height
Single action, gravity return

Hydraulic System
For 2000 kN Cap.

Mild-Steel cylinder,
Hard-chromed piston, 230 mm diameter
Maximum working pressure 50.000 kPa
Overall dimension 300 mm dia. x 320 mm height
Single action, gravity return

Hydraulic System
For 3000 kN Cap.

Mild-Steel cylinder,
Hard-chromed piston, 250 mm diameter
Maximum working pressure 50.000 kPa
Overall dimension 330 mm dia. x 320 mm height
Single action, gravity return

Hydraulic Pump

Hand operated, single action
6.000 ml reservoir capacity
Maximum working pressure 50.000 kPa
Single action, gravity return

Force Gauge

Bourdon tube manometer, 280 mm dial diameter
With maximum load pointer. Steel box housing.
Calibrated by JNK

Compressive
Platen

Upper : 180 x 180 mm, ball seating
Lower : 250 mm diameter

Clearance

Horizontal: 290 mm
Vertikal  : 310 mm

Dimension

660 x 600 x 1400 mm (l x w x h) approx.

Weight

500 kg

RC-321.3

Compression Machine

1500 kN capacity,
10 kN increments

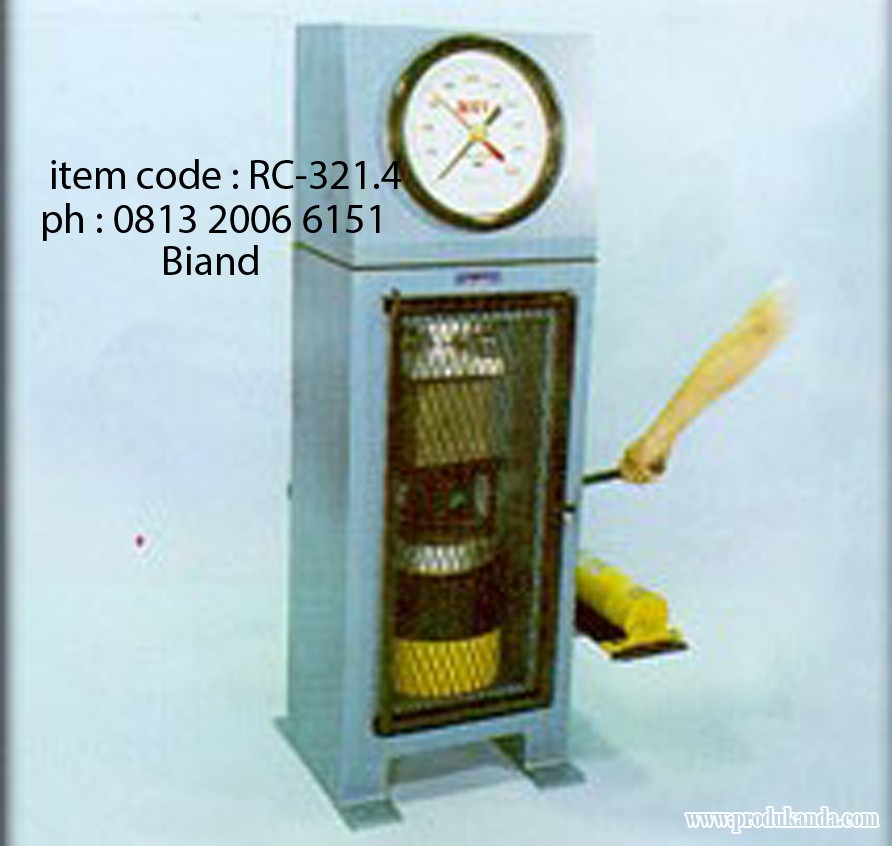

RC-321.4

Compression Machine

2000 kN capacity,
10 kN increments

RC-321.5

Compression Machine

3000 kN capacity,
20 kN increments
